Easikit™ Modular Conveyors Offer An Adaptable Conveyor Solution
Easikit™ Modular Conveyors are ideal for virtually any conveyor application including:
Many Industrial Applications
Timber Milling and Processing
Long Term And Permanent Sites.
Put an end to expensive one off conveyor designs and installations that take your time and eat into your budget.
Our modular conveyors are available in a variety of widths and various belt types.
Whether you require a temporary conveyor or a permanent installation these conveyors are well suited to larger industrial applications and demolition jobs where higher throughput is required.
Contact us to discuss your application, we can visit your site and advise on the conveyor configuration for your project.
Long Term And Permanent Sites.
Install exactly what your site or project requires, quickly and easily. Easikit™ modular conveyors put an end to expensive one-off conveyor designs and installations that take your time and eat into your budget. Compact and adaptable.
A number of sections can be joined together to create a conveyor that suits your handling needs and site.
Available in six widths from 300mm to 1500mm plus a road towable 450mm conveyor.
Configured with standard components to satisfy project-specific requirements, Easikit Modular Conveyors are the smart, safe, efficient way to handle and move material.
Keep material moving from one job to the next with Easikit Modular Conveyors designed for fast set up and easy reconfiguration.
Talk to us about your specific requirements – phone or email us now

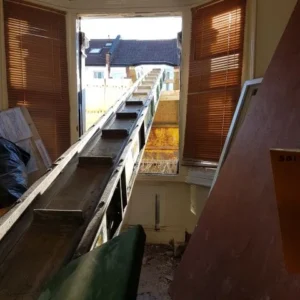

A compact, adaptable modular conveyor with a 300mm wide belt. Up to 14.5m in one length, longer configurations available on request.
Can operate on steep inclines depending on materials being moved and type of belt used.
This is a very robust model that can be used in harsh environments and is versatile when longer lengths are needed.
Belt Width 300mm ● Belt Speed 0.6 - 0.8 m/sec ● Maximum Capacity 20 tph ● Voltage 230v ● Weight 60kg/metre

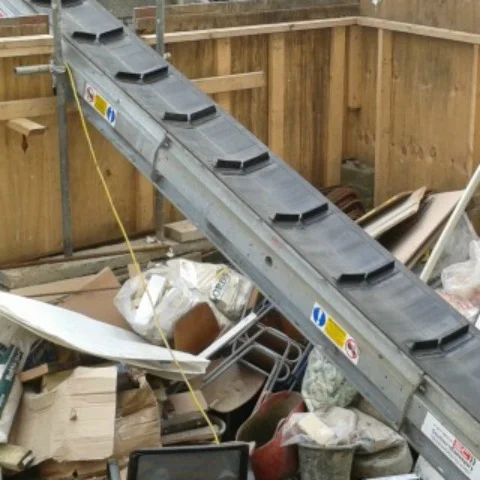

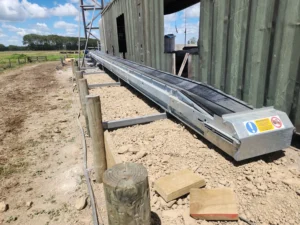

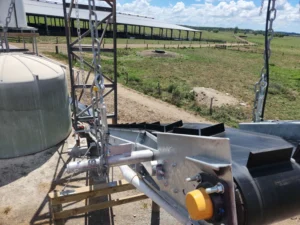

A highly adaptable modular conveyor with a large capacity. 450mm wide belt, up to 16m in one length, longer combinations available on request.
A robust and durable conveyor, ideal for medium duty trough belt materials handling.
Can operate on steeper inclines depending on material being moved and type of belt used. Also ideal for under house excavations with extremely limited space
Belt Width 450mm ● Belt Speed 0.65 - 0.85 m/sec ● Maximum Capacity 40 tph ● Voltage 230v ● Weight 50kg/metre

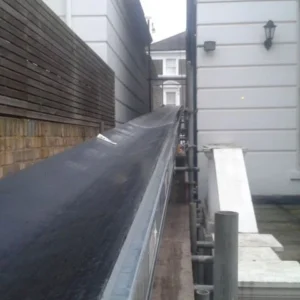

Adaptable modular conveyor with rock solid reliability and large capacity.
600mm wide belt, up to 25.6m in one length.
Longer combinations are available on request.
Durable galvanised finish.
Belt Width 600mm ● Belt Speed 0.3 - 0.9 m/sec ● Maximum Capacity 60 tph ● Voltage 415v ● Weight 70kg/metre

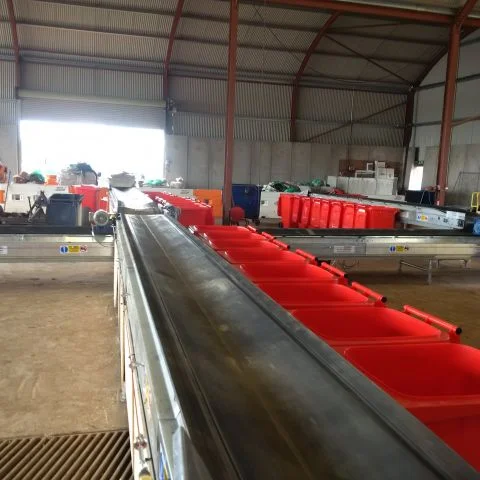

The perfect solution for applications requiring large throughput. Ideal for use in recycling. Engineered for high volume loads.
900mm wide belt with flat middle section and slightly troughed edges. An ideal 'picking station', this conveyor can be configured to suit many different material types and applications making it very versatile and robust with a tough galvanised finish. Can operate on steep inclines depending on materials being moved and type of belt used.
Belt Width 900mm ● Belt Speed 0.3 - 0.9 m/sec ● Maximum Capacity 60 tph ● Voltage 415v ● Weight 70kg/metre

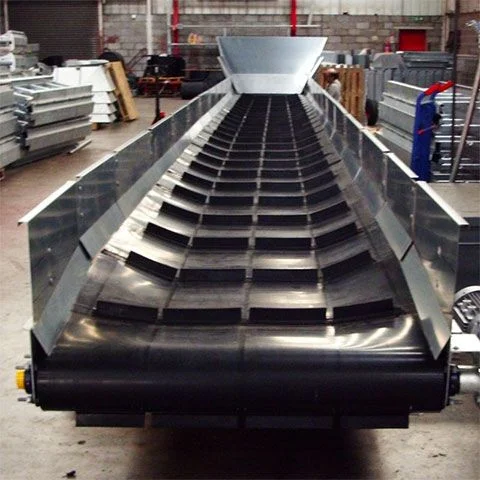

Ideal for larger volume materials handling and industrial applications with an extra wide belt for high volume.
Ideal for recycling plants and where picking from both sides of the conveyor is required.
Adaptable, modular design. 1200mm wide belt. Robust construction with a durable galvanised finish.
Belt Width 1200mm ● Belt Speed 0.3 - 0.9 m/sec ● Maximum Capacity Contact Us ● Voltage 415v ● Weight 93kg/metre

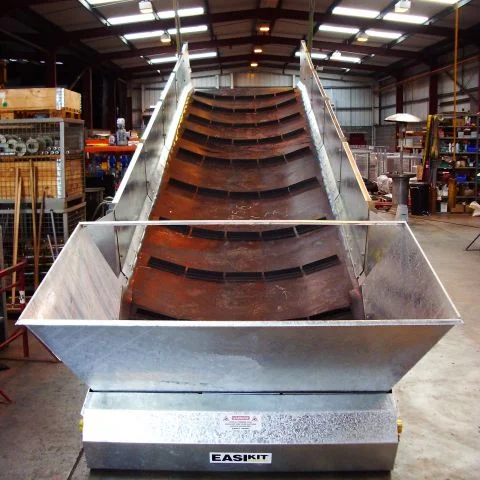

The Easikit 1500mm conveyor is the widest model in the range.
Ideal for low density, high volume material handling. Suited to applications where material needs to be spread evenly across the belt (e.g. for material separation).
Built to order. 1500mm wide belt. Robust construction. Durable galvanised finish.
Belt Width 1500mm ● Belt Speed 0.3 - 1.16/sec ● Maximum Capacity Contact Us ● Voltage 415v ● Weight 145kg/metre

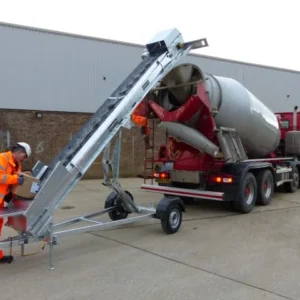

A unique road-towable unit comprising a 5 metre x 450mm belt conveyor.
Mounted on a trailer chassis. Engineered for easy transportation and folds flat for greater mobility when you need it.
A highly adaptable modular conveyor with a large capacity for medium duty handling.
Complete with 'plug and play' 230v connection for instant use.
Available with variable speed options
Conveyor specifications especially for larger conveyors can vary with component combinations and power requirements
Large Excavations ● Construction ● Demolition ● Timber Processing Plants ● Timber Mills ● Recycling ● Tunnelling ● Sewerage Treatment Plants ● Dewatered Sewage Sludge ● Ballast Transfer
